Challenger Edge Lock Bi-Metal Band Saw Blades

For high speed structural, interrupted, and bundle cutting

ModelZWEN635C23SEL
Part938123
TPI2/3
Width1-1/2"
Thickness.05"
Weight.29 LB
Country of OriginUSA

Features

  • Tooth coating to withstand temperature from increased cutting rates
  • Coated heavy set tooth design
  • Tooth shape designed to prevent stripping in structural parts
Details Videos Resources Specifications Applications Related Products

Description

Challenger Edge Lock features a temperature-resistant coating that maintains blade life for more than double the productivity of uncoated blades. Made of premium bi‑metal materials, it’s engineered for peak performance right out of the box — no break‑in needed. In fact, break‑in may reduce performance and shorten blade life. Challenger Edge Lock’s unique tooth shape and heavy set design prevents strippage and reduces vibration while cutting.

Applications

  • I-beams
  • Interrupted cuts
  • Bundle cutting
  • Free-Machining Steel

Users

  • Metal Service Centers
  • Production Facilities
  • Tool Shops
  • Steel Structure Fabricators
  • Fabrication

Benefits

  • More than double production rates of uncoated blades
  • Longer blade life
  • Reduced vibration
  • Reduced chance of stripping teeth

Videos

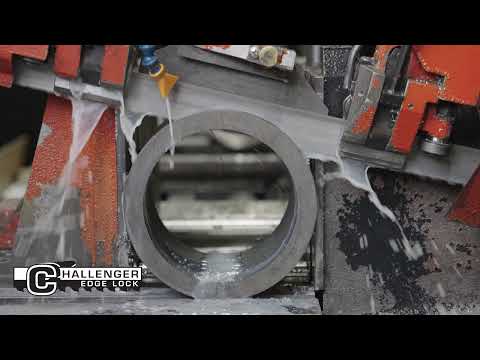

Product Insight: Challenger Edge Lock
Morse University: Challenger Edge Lock
A Better Way to Cut: The Morse Story

Downloadable Resources

Product Insight: Challenger Edge Lock Product Insight: Challenger Edge Lock

Morse Industrial Product Catalog Morse Industrial Product Catalog

Specifications

ModelZWEN635C23SEL
Part938123
TPI2/3
Width1-1/2"
Thickness.05"
Weight.29 LB
Country of OriginUSA

Applications

Click on the applications below to view specific application types.

Primary

Carbon Steel
A36

Secondary

Carbon Steel
1005 1006 1008 1015 1018 1020 1021 1022 1026 1029 1030 1035 1040 1043 1045 1050 1053 1055 1060 1070 1080 1095 1117 1141 1146 1215 1522 1529 1534 1552 1541V A266 A350
Cast Iron
A48 (Class 20-20ksi) A48 (Class 40-40ksi) A48 (Class 60-60ksi) A536 (120-90-02) A536 (60-40-18)

May Also Cut

Free Machining Steel
1108, 1111 1110 1115, 1137, 1145, 1151 1112, 1113 12L14
Plastics/Composites/Drywall/Laminates
Fiberglass Plexiglass Rubber PVC/ABS Composites Plastics Acoustic Ceiling Tile Drywall Plaster with Lath Plasterboard Computer Flooring Countertops Laminate Flooring Lath Plaster Formica
Titanium Alloys
99% Pure Titanium CP Titanium MST-GAL 4V TI-140 A 2CR-2MO, TI-150A TI-4 AL-4 MO TI-6AI-4V
Tool Steel - General
17-22-A steel (VAR) 17CrNiMo6 18CrNiMo7-6 21CrNiMoV511 31CrNiMoV9 34CrNiMo6 41B30 MOD 300M 826M4 3310 4125 4130 4140 4142 4145 4150 4170 4220 4317 4320 4325 4330 4332 4340 4345 4350 4360 4532 4620 4715 4820 5080 52100 8620 8625 8630 8740 8822 9310 AMS 6431 ASTM A 182 ASTMA 350 ASTM A 469 ASTM A 508 ASTM A 588 ASTM A 592 ASTM A 707 Ferrium S53 HSLA-100 Steel HY-80/100 Steel HY-100 Low Side Chromium Steel HY-130 Steel HY-TUF Nitralloy 135, N
Tool Steel - Die Steels
A2, A3, A6 A7 A10 D2, D3, D4 D7 O1, O2 O6, O7
