M-Factor GES Wide Kerf Carbide Tipped Band Saw Blades

Avoids pinching in exotic and ferrous steels applications

Model	ZCTNGES1.5/2WS
Part	868198
TPI	1.5/2
Width	1-1/2"
Thickness	.050"
Weight	.32 LB
Country of Origin	USA

Features

Wider kerf eliminates pinching on large billet materials for production efficiency
Multi-chip tooth pattern reduces chip build up on tooth and relieves stress
KerfLock^® Technology prevents pinching, providing extended blade life
Available with SParc^® Technology on 2/3 TPI and coarser

Details Videos Resources Specifications Applications Related Products

Description

M-Factor® GES Wide Kerf is designed specifically for exotic material and ferrous steel, particularly thick wall and solid billet applications. The Wide Kerf option is recommended for materials prone to pinching. Featuring patented Kerflock^® Technology, M-Factor GES Wide Kerf offers longer blade life and cutting efficiency. SParc^® Technology is an option on 2/3 TPI and coarser, which provides up to 20% faster cutting, 20% longer life, and the ability to cut up to 25% larger material.

Patents: No. 10279408 B2; 10926343 B2

Users

Steel service centers
Forging
Specialized manufacturing

Benefits

Longer blade life
Reduced vibration, heat, and noise for greater cutting efficiency
No break in needed
Consistent kerf through life of the blade

Videos

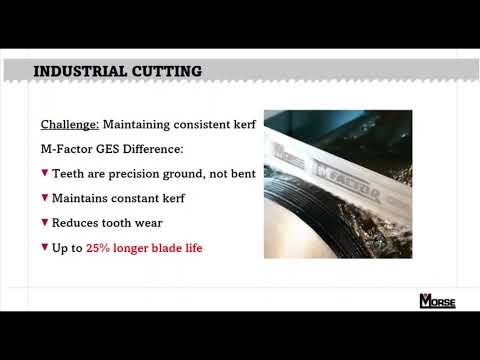

Product Insight: Industrial Band Saw Blades

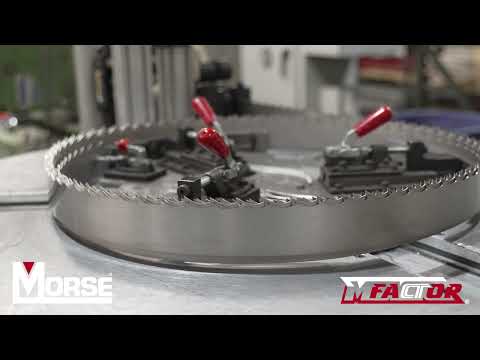

Tech Tip: Band Saw Safety

Get to know Morse!

Downloadable Resources

Product Insight - M-Factor GES

Morse Industrial Product Catalog

Morse Blades: Carbide Tipped and Bi-Metal

Anatomy of a Band Saw Blade

Band Saw Tooth Selection Guide

No Break-In Recommendation

Specifications

Model	ZCTNGES1.5/2WS
Part	868198
TPI	1.5/2
Width	1-1/2"
Thickness	.050"
Weight	.32 LB
Country of Origin	USA

Applications

Click on the applications below to view specific application types.

Primary

Non-Ferrous Alloys - Brass

Cartridge / Red Brass (85%) Naval Brass

Non-Ferrous Alloys - Bronze

932 937 Aluminum Bronze 865 AMPCO 18 AMPCO 21 AMPCO 25 Leaded Tin Bronze

Non-Ferrous Alloys - Copper

70-30 Copper Nickel Beryllium Copper C10100 CDA 220 CDA 360 Chromium Copper Hiduron 191

Non-Ferrous Alloys - Nickel Aluminum Bronze

Carbon Steel

1005 1006 1008 1015 1018 1020 1021 1022 1026 1029 1030 1035 1040 1043 1045 1050 1053 1055 1060 1070 1080 1095 1117 1141 1146 1215 1522 1529 1534 1552 1541V A266 A350

Cast Iron

A48 (Class 20-20ksi) A48 (Class 40-40ksi) A48 (Class 60-60ksi) A536 (120-90-02) A536 (60-40-18)

Case Hardened

Chrome Alloy Steels

6117, 6120

Chrome Moly Steel

4118 - 4130 4135 - 4142 4145 - 4161 4150H 41L50

Chrome Vanadium Steel

6118 6150

Chromium Steel

50100 - 52100 5045 - 5046 5120 - 5135 5140 - 5160

Duplex Alloys

F51 Duplex Ferralium 225 Duplex Super Duplex Steel (Zeron 100)

Free Machining Steel

1108, 1111 1110 1115, 1137, 1145, 1151 1112, 1113 12L14

Graphite

Magnesium

Manganese Steel

1330 - 1345 1513 - 1536 1541 - 1572

Maraging Steel

Molybdenum Steel

4012 - 4024 4027 - 4037 4042 - 4047

Nickel and Tool Steel

Alloy 20, 800H or 800HT Custom Age Customer 20Cb-3

Nickel Based Alloys

2317 2330, 2345 2512, 2517 Duranickel Hastelloy A Hastelloy B Hastelloy C Incoloy 800 - 802 Incoloy 804 - 825 Inconel Inconel 617 Inconel 625-x-750 Inconel 718 K-Monel K-R-Monel Monel Monel R R-Monel NI-SPAN-C 962 Nickel Alloy 617 Nimonic 75 Nimonic 90 Rene 41 Rene 88 Udimet 500 Waspalloy

Nickel Chrome Moly Steel

4317 - 4320 4337 - 4340 4718 - 4720 8615 - 8627 8630 - 8645 8647 - 8660 8715 - 8750 9310 - 9317 9347 - 9445 9747 - 9763 9840 - 9850

Nickel Moly Steel

4615 - 4626 4640 4815 - 4820

Stainless Steel - General

13-8 15-5 15-5 PH 17-4 17-4 PH 254 SMO 440 F, 443 2205 2507 A286 Custom 450

Stainless Steel - Austenitic

201, 202, 301, 302 303, 303F, 303Se 304, 304L, 304LN 305, 308 - 314 310H 316, 316L, 317, 329, 330 321, 347, 348 N08367 Nitronic 40 Nitronic 50 Nitronic 60

Stainless Steel - Ferritic

405 429, 430 430F, 430FSe 434, 436 442 446

Stainless Steel - Martensitic

403, 410, 420 414, 416Se 420F, 416, 430, 430F 440A, 440B, 440C HT9 501, 502

Tantalum

Titanium Alloys

99% PURE TITANIUM CP Titanium MST-GAL 4V TI-140 A 2CR-2MO, TI-150A TI-4 AL-4 MO TI-6AI-4V

Tool Steel - General

17-22-A steel (VAR) 17CrNiMo6 18CrNiMo7-6 21CrNiMoV511 31CrNiMoV9 34CrNiMo6 41B30 MOD 300M 826M4 3310 4125 4130 4140 4142 4145 4150 4170 4220 4317 4320 4325 4330 4332 4340 4345 4350 4360 4532 4620 4715 4820 5080 52100 8620 8625 8630 8740 8822 9310 AMS 6431 ASTM A 182 ASTM A 350 ASTM A 469 ASTM A 508 ASTM A 588 ASTM A 592 ASTM A 707 Ferrium S53 HSLA-100 Steel HY-80/100 Steel HY-100 Low Side Chromium Steel HY-130 Steel HY-TUF Nitralloy 135, N

Tool steel - Die Steels

A2, A3, A6 A7 A10 D2, D3, D4 D7 O1, O2 O6, O7 P-3 P-20

Tool steel - Mold Steels

P-3 P-20

Tool Steel - Hot Work, Low Alloy and High Speed Steels

H-11, H-12, H-13, H-13 Mod, H-21 H-22, H-24, H-25 L-6 L-7 M1, M2, M7 M3, M4, M10 M30, M33 M41, M42, M43 T1, T2 T4, T5, T6 T15, M15 W1 6150 VIM-VAR

Tool Steel - Water Hardening Steels

Secondary

Non-Ferrous Alloys - Aluminum

1100 2014 2024 2050 2099 2219 2618 3003 4032 5052 5083 5456 6013 6061 7039 7050 7075 7085 7175 Castings

Carbon Steel

A36

May Also Cut

Plastics / Composites / Drywall / Laminates

Acoustic Ceiling Tile Composites Computer Flooring Countertops Drywall Fiberglass Laminate Flooring Plaster with Lath Plasterboard Plastics Plexiglass PVC/ABS Rubber
