When fabricators are processing large structural steel sections, cutting performance can have a direct impact on productivity, costs, and overall throughput. That’s why companies are constantly looking for ways to reduce cut times, extend blade life, and eliminating common cutting issues such as tooth stripping and excessive vibration.
For Struct Steel Engineering in Enniskillen, Northern Ireland, it is a point of pride to be an industry leader in steel engineering. Their commitment to excellence and passion for engineering drives them to consistently exceed expectations and uphold the highest standards of quality to maintain its trusted name. So when they were introduced to Challenger Edge Lock, our first coated band saw blade, they needed to see for themselves if the blade could truly deliver.
Supplied by Hawkes Machine Tools, which specializes in providing high-quality cutting tools, machining equipment, and precision engineering solutions worldwide, Challenger Edge Lock demonstrated exceptional cutting performance on small and large H-section steel while showcasing the benefits of its advanced blade technology.
Built for Productivity
Challenger Edge Lock was developed to deliver more than just longer blade life. Featuring a temperature-resistant coating, the blade maintains its cutting edge under demanding conditions, achieving more than double the productivity of comparable uncoated blades.
Manufactured from premium bi-metal materials, the blade is engineered for peak performance from the very first cut. Unlike conventional band saw blades, no break-in procedure is required. In fact, break-in can actually reduce performance and shorten blade life, making Challenger Edge Lock ready to work at full capacity right out of the box.
Its innovative design features include:
- A unique tooth geometry that improves cutting efficiency
- A heavy set tooth design that helps prevent tooth strippage
- Reduced vibration during cutting for smoother operation
- Extended blade life and consistent cutting performance
Real-World Results at Struct Steel
To evaluate Challenger Edge Lock’s capabilities, Struct Steel ran the blade on two large structural H-sections commonly encountered in steel fabrication.
Fast Cutting on a Smaller H Section

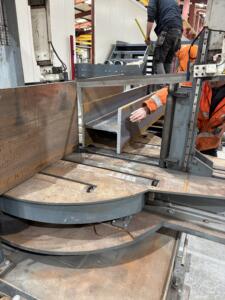

The first application involved an H section measuring 14″ x 16″ x 9.25″ (356mm x 406mm x 235mm).
Using a 2/3 TPI Challenger Edge Lock blade, the saw operated at:
- Band speed: 426.5′ (130 m)/min
- Feed rate: 14″ (360 mm)/min
The result was a complete cut in just 2 minutes.
For a section of this size, achieving such a rapid cut demonstrates the blade’s ability to maintain aggressive cutting performance while delivering excellent control and stability throughout the operation.
Efficient Performance on a Large H Section

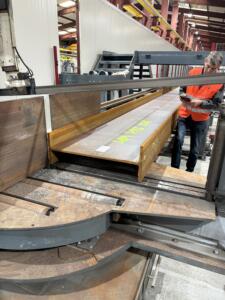

The second test involved a larger H section measuring 40″ x 12″ x 10.75″ (1016mm x 305mm x 272mm).
Struct Steel selected a 3/4 TPI Challenger Edge Lock blade and ran the saw with:
- Band speed: 426.5′ (130 m)/min
- Feed rate: 9.5″ (240 mm)/min
- Pecking system: Activated
Despite the significantly larger cross-section, the blade completed the cut in only 4.5 minutes. Watch here!
This result highlights Challenger Edge Lock’s ability to handle demanding structural steel applications while maintaining fast cutting rates and reliable performance on challenging material sizes.
The Advantage of Edge Lock Technology
Large structural steel sections place tremendous stress on a band saw blade. Heat, vibration, and heavy cutting forces can quickly lead to premature wear or tooth damage when using conventional blades.
Challenger Edge Lock addresses these challenges through its combination of advanced coating technology, premium bi-metal construction, and optimized tooth design. The temperature-resistant coating helps preserve the cutting edge, while the heavy set tooth pattern improves chip clearance and stability, allowing fabricators to maintain productivity even on large, demanding cuts.
For companies like Struct Steel, the result is straightforward: faster cuts, longer blade life, and more reliable performance on structural steel applications. Watch the blade in action here!
Proven Performance Where It Matters
The successful results achieved by Struct Steel demonstrate the real-world value of Challenger Edge Lock in heavy steel fabrication environments. With cut times of just 2 minutes on a 14″ x 16″ x 9.25″ H section and 4.5 minutes on a massive 40″ x 12″ x 10.75″ H section, Challenger Edge Lock proved it can deliver the speed and durability fabricators need to stay productive.
For manufacturers looking to increase throughput, reduce blade consumption, and achieve consistent cutting performance from the very first cut, Challenger Edge Lock is setting a new standard for coated bi-metal band saw blades.
